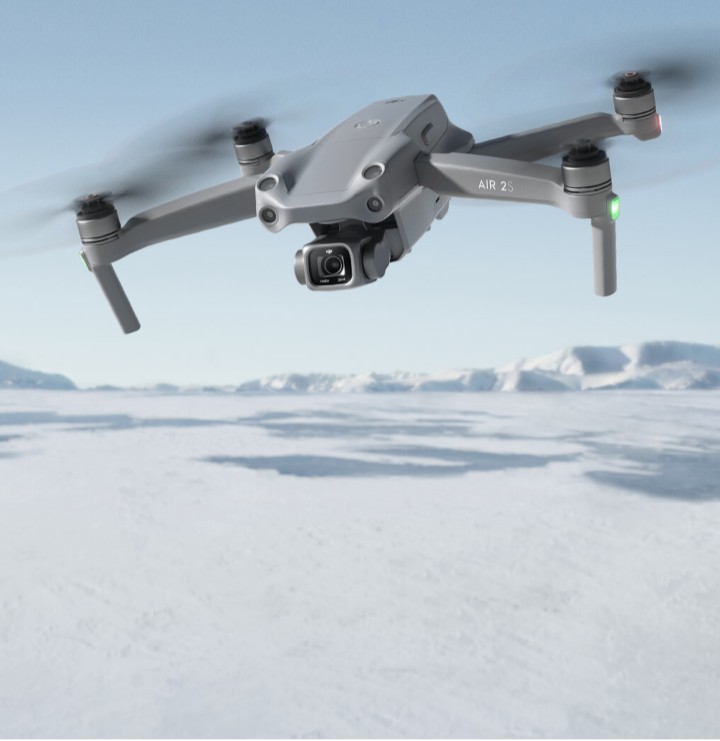

DJI Air 2S,as aircraft whose weight in the takeoff condition 595gm. Whose dimensions in folded condition 180 × 97 × 77 mm (length × width × height).Where the dimensions of unnfolded drones are 183 × 253 × 77 mm (length × width × height).
Its diagonal length is 302 mm.
Max ascent speed is 6 m/s (S Mode), 6 m/s (N Mode) and the maximum descent speed is 6 m / s (S Mode), 6 m/s (N Mode). The
maximum service ceiling of the drone is above sea level 5000m.
The maximum flight time (no wind) of the drone 31 minutes.Max hovering time (no wind) is 30 minutes which made the drone
more stable.Max flight distance (no wind)
18.5km, this distance will help to take pictures of remote places.Max Flight Speed (near sea level, no wind) is 19 m/s (S Mode), 15 m / s (N Mode), 5 m/s (C Mode). Max wind speed resistance is 10.7 m / s which makes the drone airborne. It will also allow you to fly in more windy places.
Max tilt angles are 35° (S Mode), 30° (front), 20°(back), 35°(left), right 35°(N Mode). Max angular veelocity is 250 ° / s (S Mode), 90 ° / s(N Mode), 60 °/s(C Mode).Operating temperature range 0 ° to 40 C.Operating frequency is 2.4 GHz to 5.8 GHz.
Transmission power (EIRP) is 2.4 GHz
(FCC: ≤30dBm, CE: ≤20dBm, SRRC: ≤20dBm, MIC: ≤20dBm) and 5.8 GHz (FCC: ≤30dBm, CE: ≤14dBm, SRRC: ≤29dBm).Hovering accuracy range is vertically ± 0.1 m (with vision positioning), ± 0.5 m (with GNSS positioning) and horizontally 0.1 m (with vision positioning), ± 1.5 m (with GNSS positioning).Propellers properties
quick release, low noise, folding aircraft arms. GNSS are GPS, GLONASS and GALILEO.There is a single compass to determine the direction.IMU is single IMU. Huge amount of internal storage 8GB.
Intelligent flight battery capacity is 3500 mAh which will give you enough time for drone flying. Battery voltage is 11.55 V.Max charging voltage is 13.2 V.Battery Type LiPo 3S which is good enough for drones.
Energy 40.42Wh and weight 198gm for which the drone got a premium look.
Charging temperature range 5° to 40°C.Max charging power is 38W.
Camera sensor called 1 "CMOS which will help in stabilizing depths and taking videos. Effective pixels is 20MP. Image pixel size 2.4μm. FOV of the lens is 88 °, 35mm format equivalent to 22mm, aperture f / 2.8, shooting range: 0.6 m to 3. ISO Range
For video 100-3200 (Auto), 100-6400 (Manual) and 10-Bit Dlog-M Video:
100-800 (Auto), 100-1600 (Manual). ISO range for photos are 100-3200 (Auto) and 100-12800 (Manual).With the help of DJI Air 2S any place of interest or installation can be displayed in an interesting way.DJI Air 2S is one of the best for more lively, more vivid, more profound,more professionally, more meaningful video and photography.
This can be the best drone for YouTube vloggers and cinematographers.
Still image size is 20MP, 5472 × 3648 (3: 2), 5472 × 3078 (16: 9) which makes the image more vivid. Still photography modes are single shot (20MP), burst shooting 20 MP (continuous burst), auto exposure bracketing (AEB) 20 MP, 3/5 bracketed frames at 0.7 EV bias,timed (20 MP,2/3/5/7/10/15/20/30/60s).
Smart photo (including HDR and HyperLight) are 20 MP, HDR panorama Vertical (3 × 1): 3328 × 8000 (width × height), Wide-angle (3 × 3): 8000 × 6144 (width × height), 180 ° (3 × 7): 8192 × 3500 (width × height), sphere (3 × 8 + 1): 8192 4096 (width × height) .File format is JPEG / DNG (RAW).
The video resolution is 5.4K (5472 × 3078 at 24/25/30 fps), 4K Ultra HD (3840 × 2160 at 24/25/30/48/50/60 fps), 2.7K (2688x1512 at 24/25/30/48/50/60 fps), FHD (1920 × 1080 at 24/25/30/48/50/60/120 fps), MP4 / MOV (H.264 / MPEG-4 AVC, H.265 / HEVC).
Max video bitrate is 150 Mbps. Supported system is FAT32 / exFAT. Supports a microSD card with a capacity of up to 256 GB. Zoom recording is not available while recording 10-bit videos and 120fps videos. Zoom is 4K / 30fps (4x ), 2.7K / 60fps (4x), 2.7K / 30fps (6x), 1080p / 60fps (6x), 1080p / 30fps (8x).
The 3-axis gimbal will make the image more stable and smooth (tilt, roll, pan). Mechanical ranges are tilt: -135 ° to 45 °, roll: -45° to 45°, pan: -100° to 100°.Pan axis
not controllable.Controllable range for tilt -90° to 0, default -90 ° to 24 ° (extended). Max controllable speed (tilt) 100°/s and angular vibration range ± 0.01.
Sensing systems are forward precision measurement with range 0.38-23.8m, effective sensing speed ≤15 m/s, field of view (horizontal-72° and vertical-58°),backwardprecision measurement with range 0.37-23.4m, effective sensing speed ≤12 m/s, field of view 57 ° (horizontal) 44 ° (vertical),downward ToF measurement with Range 0.1-8m, hovering range 0.5-30m, vision sensor hovering range 0.5-60m,upward precision measurement range 0.34-28.6, FoV is 63 ° (horizontal) 78 ° (vertical),downward auxiliary light (Single LED).
Remote controller supports OcuSync 2.0 with transmission system, multiple controllers, DJI smart controller. Battery life
6 hours (4 hours when charging a mobile device).
Supported mobile device connectors are Lightning, Micro USB, USB-C and max supported mobile device size
180 × 86 × 10 mm (length × width × height) .Operating temperature is -10 ° to 40 ° C (14 ° to 104 ° F).
Transmitter power (EIRP) is 2.4 GHz to 5.8 GHz.
Charging Input is 100-240V, 50/60 Hz,1.3A. Charging output is charging port 13.2V⎓2.82A, USB port 5 V⎓2 A, voltage
13.2 V, rated power 38W.
Price:$999 USD.
